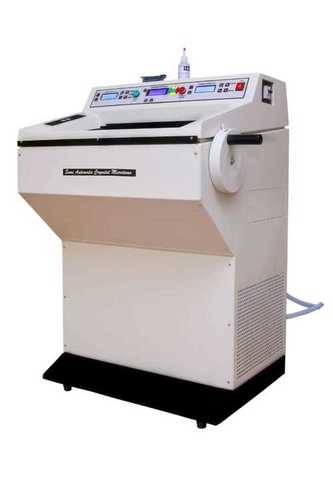

Automatic Cryostat Microtome

• It is designed under overall engineering and ergonomic concept. All the components are processed with computer numerical controlled machine.
• Specimen retraction function, protects specimen from blade injury.
• Trimming (Motorized) thickness range 10 - 100 micron in 10 micron / cutting button makes it easy to switch from trim and section mode.
• It is designed under overall engineering and ergonomic concept. All the components are processed with computer numerical controlled machine
• Specimen retraction function, protects specimen from blade injury.
• Trimming (Motorized) thickness range 10 - 100 micron in 10 micron / cutting button makes it easy to switch from trim and section mode.
• Equip with counter to calculate total pieces and thickness.
• Dual compressors, which are made in Germany, freeze the Cryostat chamber, freezing shelf, knife holder and specimen clamp separate with pro-environment refrigerant R404.
• The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal expansion and contraction and enable minimum service and maintenance.
• Self-explanatory symbols for all functions and displays, easy to learn and operate.
• LCD screen to display date such as sample travel, thickness, function controlling, day, time, temperature, timed on/off and so on.
• Control panel with locking function to avoid wrong operation.
• Hand wheel locking.
• It has cleaning device, easy help customer to clean the unit.
• Specimen orientation XY-8, Z-360 adjustable at any orientation to ensure precise placement.
• Self-detection function for the temperature sensor, can help to warm the failure on temperature sensor.
• UV option enables surface disinfection of harmful bacteria, viruses and spores by using 35 min after each use. It also has low-voltage DC shadow-less lamp.
• Heat-able and remove-able glass door.

• Vertical specimen stroke length will be 55-60mm, with a horizontal specimen feed of 25-30mm.
• Specimen size (Section) 50x80mm.
• The cryostat is a floor standing model with power requirements of 220V , 50-60Hz.
• Maintenance free microtome with section thickness setting range from 0 to 60pm will be available .
• 0-10m in 1m increments
• 10-20m in 2m increments
• 20-60 m in 5 m increments
• Motorized coarse feed preferably at two speeds.
• Rabid  0.8mm/sec. Slow-0.2mm/sec.
• Disposable blade holder system with lateral displacement and integrated glass anti-roll guide will be available.
• Instrument will have closed drainage system to allow controlled disposal of fluids.
• Automatic & manual chamber defrost facility will be available with one automatic defrost cycle /24 hours.

TECHNICAL SPECIFICATIONS:

• Useable blade holder system with lateral displacement and integrated glass anti-roll guide will be available.
• Device will have closed drainage system to permit controlled disposal of fluids.
• Automatic & manual chamber defrost installation will be available with one automatic defrost cycle /24 hours.
• Available with 0-10m in 1m increments , 10-20m in 2m increments and 20-60 m in 5 m increments.
• Machine has powerful motorized coarse feed preferably at two speeds with Rabid speed of 0.8mm/sec to Slow-0.2mm/sec.
• Vertical specimen stroke length will be 55-60mm, with a horizontal specimen feed of 25-30mm.
• Have a specimen size (Section) 50x80mm dimension.
• Cryostat is a floor standing model that runs on power requirements of 220V, 50-60Hz.
• Maintenance free microtome machine has section thickness setting range from 0 to 60 pm will be provided.

Technical specification

• Working temperature range ambient to -20° C.
• Quick specimen cooling.
• Chilling area for approximately 60 cassettes specimens.
• Digitally controlled thermostats.
• Environment friendly refrigerant.
• Nominal voltage AC 110V/220V @ 60Hz/50Hz.
